SINAMICS DRIVES
Family of low voltage AC drives G120 is the universal drive its modular design and wide range of power ratings extending from 0.55 kW up to 630 kW to cover all applications of driven machines and wide range of functionality Positioning capability (EPos) Comprehensive range of encoder interfaces Safety Integrated: STO, SS1, SBC, SLS, SDI, SSM Power Modules with low line harmonics Energy recovery. Multiple operating voltages 1AC 200V & 3AC 400V, The SINAMIC family drives Power modules and control units G120, G120C, G120X/XA, V20 & V90 servo

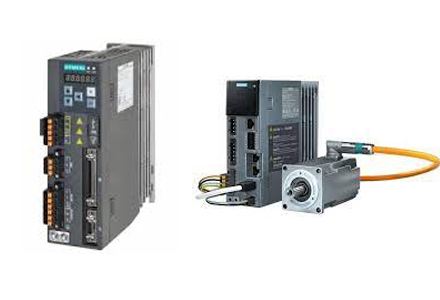

THE PERFORMANCE-OPTIMIZED AND EASY-TO-OPERATE SERVO DRIVE SYSTEM
The system comprises the SINAMICS V90 servo drive and the SIMOTICS S-1FL6 servo motor covering a power range of 0.05 to 7.0 kW for operation in single and three-phase networks. It can be integrated easily via PTI, PROFINET, USS or Modbus RTU. The SINAMICS V90 system enables simple motion control tasks to be implemented cost-efficiently with the focus being on dynamic motion and processing.
Specifications
| Voltage Range: | 3AC 380V-480V (–15% / +10%) |
| Power Range: | 0.55 kW - 250 kW (0.75hp - 400hp) |
| Control Mode: | Vector, V/f & V/f ECO |
| Applications: | Compressing (HVAC/R), Conveying, Lifting, Hoisting, Winching and Processing, Processing Mixers, Crushers, Agitators, Centrifuges, Extruders. |
| Voltage Range: | 3AC 380–480V –20 % +10 % with 47/63 Hz +/–5 % |
| Power Range : | 0.55–132 kW (0.75–150 hp) |
| Control Mode: | Vector, V/f, V/f ECO |
| Applications: | Pumps, Blowers, Compressing (HVAC/R), Conveying, Processing Mixers, Agitators & Centrifuges. |
| Voltage Range: | 1AC 200V - 240V & 3AC 380V - 480V (–15% / +10%) |
| Power Range: | 0.05 kW - 7 kW |
| Torque Range: | 0.16 – 6.37Nm |
| Control Mode: | Position and speed control |
| Applications: | Metal forming machinery, Converting/printing industry, Packaging industry & Material handling machinery. |

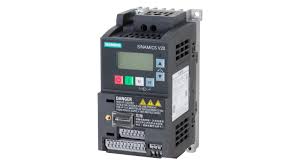

| Voltage Range: | 1AC 200V - 240V & 3AC 380V - 480V (–15% / +10%) |
| Power Range : | 0.12 kW to 30 kW (1/6 hp up to 40 hp) |
| Control Mode: | V/f, V²/f FCC & V/f multi-point |
| Applications: | Centrifugal pumps, Radial / axial fans & Compressors |
| Voltage Range: | 1Phase 230VAC & 3Phase 415VAC |
| Power Range: | 0.75 kW - 630 kW (1 hp - 700 hp) |
| Control Mode: | HVAC, V/f, V/f ECO |
| Applications: | Centrifugal pumps, Radial / axial fans & Compressors. |
