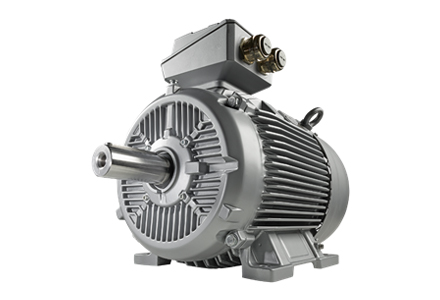

LOW VOLTAGE MOTORS
SIMOTICS low voltage motors for line and converter operation Siemens has a wide range of IEC low voltage asynchronous industrial motors from 0.09 kW to over 5 MW. IEC motors provide a high reliability and efficiency, are suitable for all industries and applications, meet all standard requirements and fulfill international and local regulations.

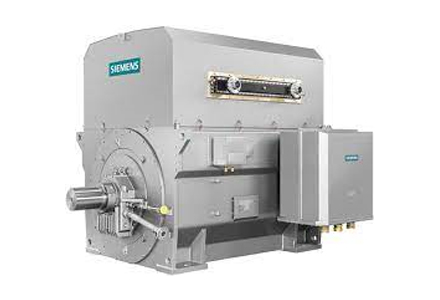

HIGH VOLTAGE MOTORS
SIMOTICS High Voltage Motors – for every demand SIMOTICS HV motors are the perfect choice for virtually any configuration in the power range from 150 KW to 100 MW, with speeds from 7 to 16,000 rpm and torques up to 40,000 kNm. Compliant with IEC and NEMA standards, the motors can be equipped with different cooling systems, explosion-proof protection classes and optional protection levels up to IP66.
Specifications
| Power Range: | 0.09 Kw - 1250 Kw Frame size 71-500 |
| Voltage Range: | 220-240V, 360-415V, 440-480V, 525V - 690V |
| Frequency Ranges: | 50Hz & 60Hz |
| Nos of Poles: | 2P, 4P, 6P & 8P |
| Mounting Type: | IMB3, IMV5, IMV6, IMV1, IMV3, IMB5, IMB14, IMV18, IMV19, IMB35, IMB34, IMV36, IMB6, IMB7, IMB8, IMV15 |
| Efficiency Class: | IE2, IE3 & IE4 |
| IP Protection: | IP55, IP56, IP65 |
| Application: | Fans, Blowers, Centrifugal pumps, Line shafting, Conveyors, Compressors, Crushers, Agitators, Reciprocating pumps, Sheers, Punch presses, Die stamping, Mixture, Accelerators, Milling, Forging, Hoist & Cranes. |
| Power Range: | 150kW - 7.1MW |
| Voltage Range: | 2.3 - 6.6kV 50/60Hz Fame Size 315 - 630 |
| Nos of Poles: | 2P, 4P, 6P, 8P, 10P, 12P, 14P & 16P |
| Mounting Type: | B3 & B35 |
| IP Protection: | IP23, IP24, IP55 & IP66 |
| Application: | Refiners, Large extruders, Mills, Crushers, Air separation plants, Blast-furnace blowers, Gas compressor stations and Gas liquefaction plants. |
