BAUMER INDUSTRIAL ENCODERS
Baumer Industrial Measuring and monitoring of rotary speed and rotary shaft positions at machines, installations and electrical drives. The Baumer Group is leading at international level in the development and production of sensors, shaft encoders, measuring instruments as well as components for automatic image processing. With marked customer orientation, consistently high quality and vast innovation capability, Baumer develops specific solutions for many industries and applications worldwide.
Specifications

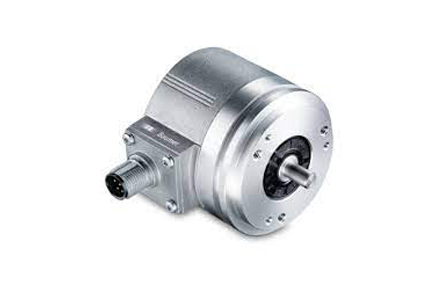

| Absolute: | Output ≤65536/16 bits, TTL, HTL, 5V, 10V, 4-20mA, Profinet, Profibus, Ethernet, EtherCAT, SSI, CANopen, SAE J1939, Solid (6–10 mm) |
| Incremental: | Output up to 65536 PPR, TTL, HTL, Solid (4-11mm) |
| Accessories: | Torque supports, spring washers, connectors and cables and also available Functional safety certified encoders, Real-time Ethernet encoders, Stainless steel encoders. |

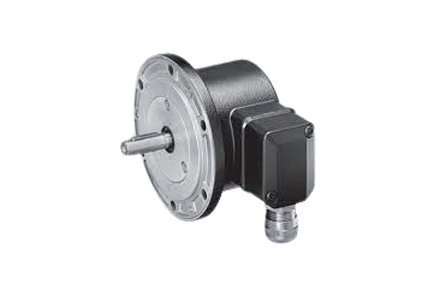

| Absolute: | Heavy Duty encoders incremental: Output up to 10000 PPR, TTL, HTL, LWL (Fiber Optic), Solid (11mm) |
| Tacho generators/resolvers: | Up to 5000 PPR, Solid (6-18mm) |
| Speed switches / monitors: | Switching speed 500kHz & 12000 RPM, Flexible variety Individual configuration Profinet, Profibus, Ethernet, EtherCAT, DeviceNet, SSI, CANopen, Solid (11mm) |
| Combinations: | Up to 5000 PPR, Solid (11mm) |
| Programmable encoders: | Output 131072 PPR, Solid (6–11mm) |

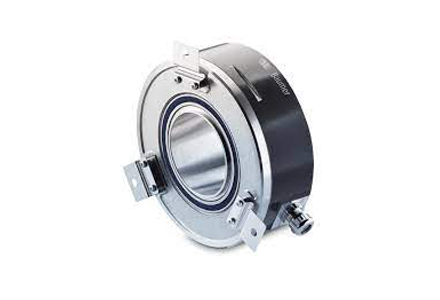

| Absolute: | Output ≤65536/16 bits, TTL, HTL, 5V, 10V, 4-20mA, Profinet, Profibus, Ethernet, EtherCAT, SSI, CANopen, SAE J1939, Blind Hallow (10–15 mm), Through Hallow shaft (10–50.8mm). |
| Incremental: | Output up to 65536 PPR, TTL, HTL, Blind Hallow (4–15mm), Through Hallow shaft (4–25.4mm) |
| Accessories: | Torque supports, spring washers, connectors and cables and also available Functional safety certified encoders, Real-time Ethernet encoders, Stainless steel encoders. |

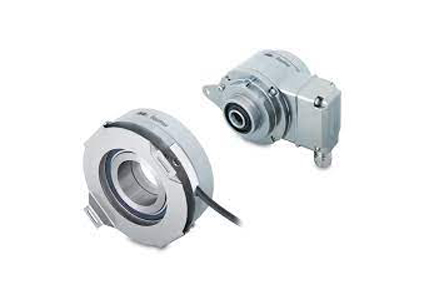

| Absolute: | Heavy Duty encoders incremental: Output up to 10000 PPR, TTL, HTL, LWL (Fibre Optic), Blind Hallow (12–38mm), Through Hallow shaft (16–150mm) |
| Tacho generators/resolvers: | Up to 5000 PPR, Blind Hallow (8–16mm) |
| Speed switches / monitors: | Switching speed 500kHz & 12000 RPM, Flexible variety Individual configuration Profinet, Profibus, Ethernet, EtherCAT, DeviceNet, SSI, CANopen, Blind Hallow (16–20 mm), Through Hallow shaft (16–25mm) |
| Combinations: | Up to 5000 PPR, Solid (11mm), Blind Hallow (16–20mm) |
| Programmable encoders: | Output 131072 PPR, Blind Hallow (8–15mm), Through Hallow shaft (8–20 mm) |

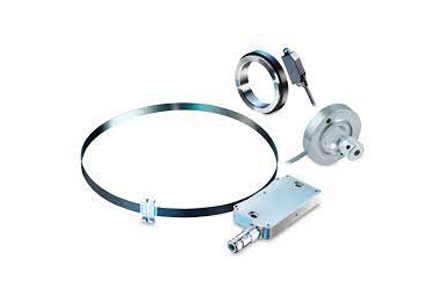

| Absolute: | Shafts up to 340 mm SSI, CANopen, Analog interface Singleturn resolution up to 17 bits Additional square wave or SinCos signals, redundant product variants |
| Incremental: | Shafts up to 740 mm, Square wave and SinCos signals Up to 524 288 pulses up to 32 768 sine periods |
